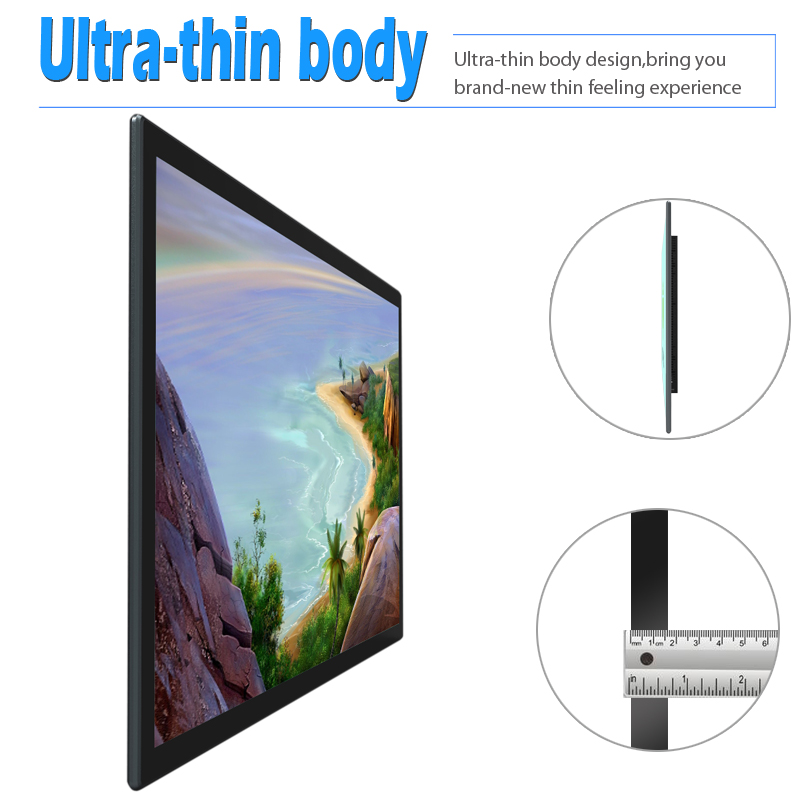

JCVISION Wall Mount Signage--WM Series
  • Product Parameters


    Size
    (inch)
    Display Area
    (mm)
    Resolution Pixel density
    Brightness
    (cd/m2)
    Contras
    View Angle
    (H/V)
    Response Time
    (MS)
    Brand
    10" 222.72x125.28mm 1024*600 117PPI 320 400:1 178°/178° 5
    LG/AUO/
    SAMSUNG
    18.5" 376.3*301 1366*769 84PPI 200 1000:1 178°/178° 5
    LG/AUO/
    SAMSUNG
    21.5" 271.3*479.8 1920*1080 86PPI 200 2000:1 178°/178° 5
    LG/AUO/
    SAMSUNG
    24" 518.4*324 1920*1200 94PPI 400 1000:1 178°/178° 5
    LG/AUO/
    SAMSUNG
    26" 575.769*323.712 1366*768 60PPI 450 1000:1 178°/178° 5
    LG/AUO/
    SAMSUNG
    27" 596.736*335.664 2560*1440 60PPI 350 1000:1 178°/178° 5
    LG/AUO/
    SAMSUNG
    32" 698.4*392.8 1388*768 60PPI 350 1800:1 178°/178° 5
    LG/AUO/
    SAMSUNG
    36" 808.128*454.572 1920*1080 49PII 350 1400:1 178°/178° 6
    LG/AUO/
    SAMSUNG
    42" 930.2*523.3 1920*1080 49PII 400 4000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    43" 941.184*529.416 1920*1080 49PII 400 4000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    47" 1039.68*584.82 1920*1080 49PII 300 4000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    49" 1073.8*604 1920*1080 49PII 300 4000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    50" 1095.8*616.4 1920*1080 49PII 300 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    55" 1209.6*680.4 1920*1080 49PII 400 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    65" 1488*868 1920*1080 49PII 360 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    70" 879*1557 1920*1080 49PII 400 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    82" 1805.76*1015.74 1920*1080 49PII 400 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    84" 1860.48*1214.35 1920*1080/3840*2160 49PII 450 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    90" 1992.96*1121.04 1920*1080 49PII 600 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    100" 2158.85*1214.35 1920*1080/3840*2160 49PII 700 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    110" 2436.48*1370.52 1920*1080 49PII 400 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG



    USB version advertising player: update advertisement by USB (M113)

    CPU

    HD video and audio decoder chip

    System RAM

    NAND FLASH 4G

    System ROM

    DDR 128MB

    Storage

    SD/USB

    Decoding resolution

    MAX. 1080P

    O/S

    UCOS

    USB 2.0 Port

    1 x USB Host, 1 x USB OTG

    Serial Port

    1 x Serial Port

    I2C Interface

    1 x I2C Interface

    LVDS Interface

    1 x can directly drive 15 ~ 100 inch LCD screen, 50/60Hz

    Audio Out

    1 x Stereo Audio Out (2 x 10W/8Ω speaker can drive directly)

    Etc.

    RTC real time clock, Timer switch, System upgrade via USB

    PWR Input

    DC 12V/5A (Power On/Off)

    PWR Consumption

    Not more than 5W (Without speaker,LCD,backlight Inverter,USB device)

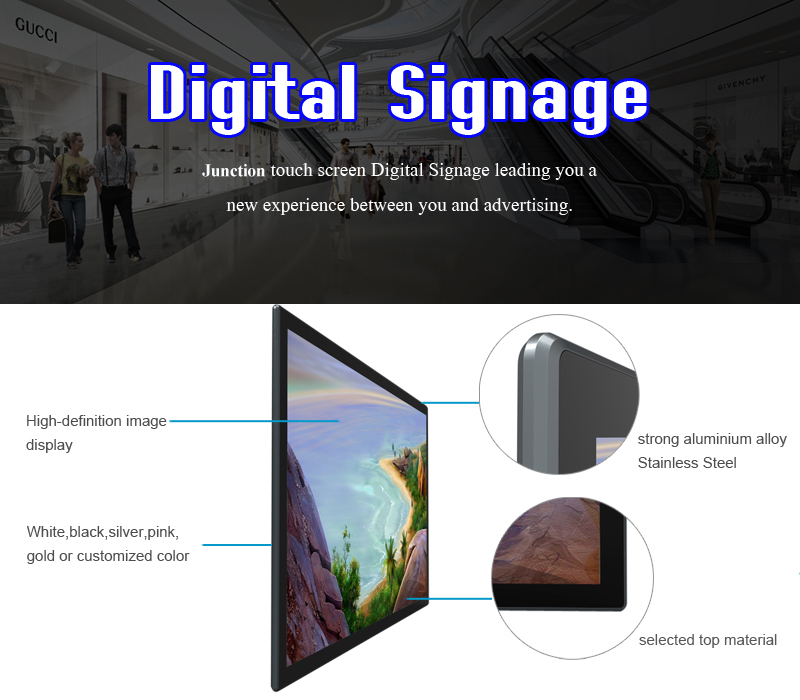

    Shell material

    Cold rolled steel with Aluminiun edge

    Glass

    toughened glass surface

    Painting

    powder coating

    Color

    Black/silver/white etc.


    Network version advertising player: update advertisement through internet, OS: Android4.2.2(M158)

    Main hardware


    Board configuration

    CPU dual core ARM Cortex A9 1.5 GHzmax1.6GHz,  Motherboard M158, GPU quad coreARM Mali-400 MP, HYNIX/SAMSUNG DDR3 1Gbyte, HYNIX/SAMSUNG NAND FLASH 8GB Scalable TF/USB

    Decoding resolution

    Perfect support 1080P Full HD

    Main function

    OS

    Android4.2.2


    Programming

    Perfect support for video / picture / caption / logo / Date Time Day / weather, etc. regional free split-screen combinations; support background images


    Play Mode

    Receiving media content over the network, stored in the local loop after, commercials, broadcast regularly, gaskets playback;

    By U-import;

    U disk playback.




    Intelligent Management

    B / S architecture, GTV digital signage release management system: a custom template; timed release program, the program cycle play, schedule broadcast emergency announcements, gaskets and other players scheduled to play, MD5 two-way encryption, multi-level approval; terminal group management, real-time monitoring, remote control, timer switch, time to download, flow control; access control; logging and statistics functions

    C / S architecture, ADPE / EzPoster programming software: programming; schedule; Export card; two-way encryption; terminal timer switch and other functions

    Multimedia Support


    Media Format

    Supports MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv and other mainstream video formats; supports MP3 and other audio formats; Support JPG, JPEG, BMP, PNG, GIF and other image formats

    Basic interface

    Power Interface

    X1

    Video input interface

    VGA×1

    HDMI×1

    Video output interface

    X 1,can directly drive 50 / 60Hz LCD, LVDS 30 core 2.0mm double needle

    Audio input interface

    X 1, linear input, 3.5MM headphone jack

    Audio output interface

    X 2,CLASS-D stereo amplifier output can directly drive 2 x 10W / 8Ω speakers, 2 core 2.0mm jack

    Ethernet Interface

    X 1,10 / 100M Ethernet

    WiFi interface

    X 1WIFI(150Mbps)

    3G module interface

    PCIE slot (supporting a phone deck) x 1

    USB interface x 1


    USB2.0 interface

    USB OTG x 1

    USB HOST x 1

    Backlight interface

    X 1, 6 core 2.0mm jack

    Fan connector

    X 2 , 2 core 2.0mm jack

    Infrared interface

    X 1, 5 core 2.0mm jack, including red and green LED

    Speaker Output

    Left channel x 1; right channel x 1

    Camera Input

    X 1 , 30 core 2.0mm double needle


    Function expansion port

    Serial × 1

    SPI port × 1

    Camera input × 1

    USB touch screen interface × 1

    Serial ports

    X 1,7 white core 2.0mm jack

    SD card holder

    X1

    Additional features

    RTC Real-Time Clock

    Time synchronization

    Watchdog reset

    Using an internal watchdog, abnormal automatic recovery

    External IR input

    NEC format support dedicated remote control

    Electrical Specifications

    Power Input

    Switching power supply (STB, 5VSB, 5V, 12V), 10 core 2.00mm

    PC version kiosk (touch screen optional): its function is the same as computer (windows), can make self-service terminal kiosk with all kinds of extention function.

    Touch screen technology

    Standard touch screen

    Infrared multi touch screen

    Other touch screen

    Capacitive,Resistance ,Surface etc.

    Standard touch points

    2 points / 4 points / 6 points

    Other touch points

    Up to 32 points multi touch

    Standard PC Specification

    Mini PC

    CPU

    Intel G3260/3.2GHZ/Dual core

    Main board

    H81/B75

    RAM

    DDR3,2GB

    HDD

    S-ATAII 500GB/16MB/5400rpm

    Graphics

    Intel HD Graphics

    Ports

    4 x USB, 1 x VGA, 1 x LAN, 1 x AUDIO-OUT , 1 x MIC-IN,DVI,HDMI

    Operating system

    Windows7,windows8,windows XP,Linux,Apple etc.

    High PC Specification (Optional)

    Mini PC


    CPU

  • Product Parameters


    Size
    (inch)
    Display Area
    (mm)
    Resolution Pixel density
    Brightness
    (cd/m2)
    Contras
    View Angle
    (H/V)
    Response Time
    (MS)
    Brand
    10" 222.72x125.28mm 1024*600 117PPI 320 400:1 178°/178° 5
    LG/AUO/
    SAMSUNG
    18.5" 376.3*301 1366*769 84PPI 200 1000:1 178°/178° 5
    LG/AUO/
    SAMSUNG
    21.5" 271.3*479.8 1920*1080 86PPI 200 2000:1 178°/178° 5
    LG/AUO/
    SAMSUNG
    24" 518.4*324 1920*1200 94PPI 400 1000:1 178°/178° 5
    LG/AUO/
    SAMSUNG
    26" 575.769*323.712 1366*768 60PPI 450 1000:1 178°/178° 5
    LG/AUO/
    SAMSUNG
    27" 596.736*335.664 2560*1440 60PPI 350 1000:1 178°/178° 5
    LG/AUO/
    SAMSUNG
    32" 698.4*392.8 1388*768 60PPI 350 1800:1 178°/178° 5
    LG/AUO/
    SAMSUNG
    36" 808.128*454.572 1920*1080 49PII 350 1400:1 178°/178° 6
    LG/AUO/
    SAMSUNG
    42" 930.2*523.3 1920*1080 49PII 400 4000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    43" 941.184*529.416 1920*1080 49PII 400 4000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    47" 1039.68*584.82 1920*1080 49PII 300 4000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    49" 1073.8*604 1920*1080 49PII 300 4000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    50" 1095.8*616.4 1920*1080 49PII 300 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    55" 1209.6*680.4 1920*1080 49PII 400 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    65" 1488*868 1920*1080 49PII 360 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    70" 879*1557 1920*1080 49PII 400 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    82" 1805.76*1015.74 1920*1080 49PII 400 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    84" 1860.48*1214.35 1920*1080/3840*2160 49PII 450 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    90" 1992.96*1121.04 1920*1080 49PII 600 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    100" 2158.85*1214.35 1920*1080/3840*2160 49PII 700 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG
    110" 2436.48*1370.52 1920*1080 49PII 400 5000:1 178°/178° 6.5
    LG/AUO/
    SAMSUNG



    USB version advertising player: update advertisement by USB (M113)

    CPU

    HD video and audio decoder chip

    System RAM

    NAND FLASH 4G

    System ROM

    DDR 128MB

    Storage

    SD/USB

    Decoding resolution

    MAX. 1080P

    O/S

    UCOS

    USB 2.0 Port

    1 x USB Host, 1 x USB OTG

    Serial Port

    1 x Serial Port

    I2C Interface

    1 x I2C Interface

    LVDS Interface

    1 x can directly drive 15 ~ 100 inch LCD screen, 50/60Hz

    Audio Out

    1 x Stereo Audio Out (2 x 10W/8Ω speaker can drive directly)

    Etc.

    RTC real time clock, Timer switch, System upgrade via USB

    PWR Input

    DC 12V/5A (Power On/Off)

    PWR Consumption

    Not more than 5W (Without speaker,LCD,backlight Inverter,USB device)

    Shell material

    Cold rolled steel with Aluminiun edge

    Glass

    toughened glass surface

    Painting

    powder coating

    Color

    Black/silver/white etc.


    Network version advertising player: update advertisement through internet, OS: Android4.2.2(M158)

    Main hardware


    Board configuration

    CPU dual core ARM Cortex A9 1.5 GHzmax1.6GHz,  Motherboard M158, GPU quad coreARM Mali-400 MP, HYNIX/SAMSUNG DDR3 1Gbyte, HYNIX/SAMSUNG NAND FLASH 8GB Scalable TF/USB

    Decoding resolution

    Perfect support 1080P Full HD

    Main function

    OS

    Android4.2.2


    Programming

    Perfect support for video / picture / caption / logo / Date Time Day / weather, etc. regional free split-screen combinations; support background images


    Play Mode

    Receiving media content over the network, stored in the local loop after, commercials, broadcast regularly, gaskets playback;

    By U-import;

    U disk playback.




    Intelligent Management

    B / S architecture, GTV digital signage release management system: a custom template; timed release program, the program cycle play, schedule broadcast emergency announcements, gaskets and other players scheduled to play, MD5 two-way encryption, multi-level approval; terminal group management, real-time monitoring, remote control, timer switch, time to download, flow control; access control; logging and statistics functions

    C / S architecture, ADPE / EzPoster programming software: programming; schedule; Export card; two-way encryption; terminal timer switch and other functions

    Multimedia Support


    Media Format

    Supports MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv and other mainstream video formats; supports MP3 and other audio formats; Support JPG, JPEG, BMP, PNG, GIF and other image formats

    Basic interface

    Power Interface

    X1

    Video input interface

    VGA×1

    HDMI×1

    Video output interface

    X 1,can directly drive 50 / 60Hz LCD, LVDS 30 core 2.0mm double needle

    Audio input interface

    X 1, linear input, 3.5MM headphone jack

    Audio output interface

    X 2,CLASS-D stereo amplifier output can directly drive 2 x 10W / 8Ω speakers, 2 core 2.0mm jack

    Ethernet Interface

    X 1,10 / 100M Ethernet

    WiFi interface

    X 1WIFI(150Mbps)

    3G module interface

    PCIE slot (supporting a phone deck) x 1

    USB interface x 1


    USB2.0 interface

    USB OTG x 1

    USB HOST x 1

    Backlight interface

    X 1, 6 core 2.0mm jack

    Fan connector

    X 2 , 2 core 2.0mm jack

    Infrared interface

    X 1, 5 core 2.0mm jack, including red and green LED

    Speaker Output

    Left channel x 1; right channel x 1

    Camera Input

    X 1 , 30 core 2.0mm double needle


    Function expansion port

    Serial × 1

    SPI port × 1

    Camera input × 1

    USB touch screen interface × 1

    Serial ports

    X 1,7 white core 2.0mm jack

    SD card holder

    X1

    Additional features

    RTC Real-Time Clock

    Time synchronization

    Watchdog reset

    Using an internal watchdog, abnormal automatic recovery

    External IR input

    NEC format support dedicated remote control

    Electrical Specifications

    Power Input

    Switching power supply (STB, 5VSB, 5V, 12V), 10 core 2.00mm

    PC version kiosk (touch screen optional): its function is the same as computer (windows), can make self-service terminal kiosk with all kinds of extention function.

    Touch screen technology

    Standard touch screen

    Infrared multi touch screen

    Other touch screen

    Capacitive,Resistance ,Surface etc.

    Standard touch points

    2 points / 4 points / 6 points

    Other touch points

    Up to 32 points multi touch

    Standard PC Specification

    Mini PC

    CPU

    Intel G3260/3.2GHZ/Dual core

    Main board

    H81/B75

    RAM

    DDR3,2GB

    HDD

    S-ATAII 500GB/16MB/5400rpm

    Graphics

    Intel HD Graphics

    Ports

    4 x USB, 1 x VGA, 1 x LAN, 1 x AUDIO-OUT , 1 x MIC-IN,DVI,HDMI

    Operating system

    Windows7,windows8,windows XP,Linux,Apple etc.

    High PC Specification (Optional)

    Mini PC


    CPU

Contact us
If you have any question,please fell free to let us know.
Add: 15902 A HALLIBURTON RD #623 HACIENDA HEIGHTS, CA, 91745
Tel: +1 650 288 4890
Web: www.jcvision-group.com
Email: info@jcvision.co

Scan the code
Message

Copyright JCVISION Technology Inc
