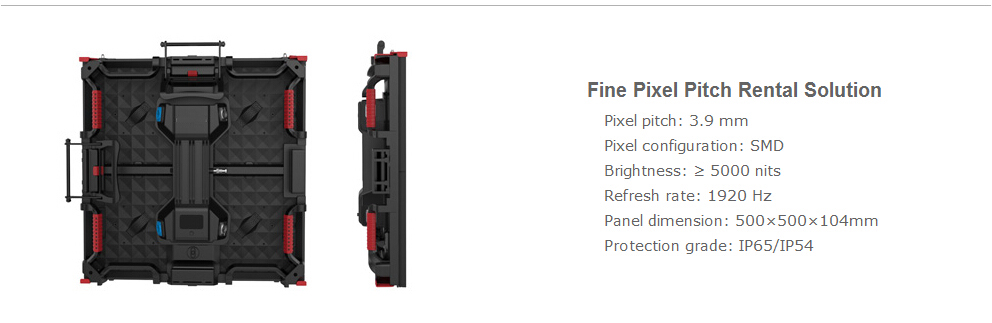

JCVISION Outdoor Rental LED Display-OR Series

  • Item
    Value
    Pixel Pitch(mm)
    3.9
    Pixel Density(pixels/㎡)
    65536
    Viewing Angle(Deg.)
    140(H)/140(V)
    Brightness(nits)
    ≥ 5000
    Grey Level(bit)
    12/14/16
    Refresh Rate(Hz)
    1920/2880/3840
    Panel Dimension(mm)
    500(W)×500(H)×104(D)
    Panel Dimension(inch)
    19.69(W)×19.69(H)×4.09(D)
    Panel Resolution(pixels)
    128×128

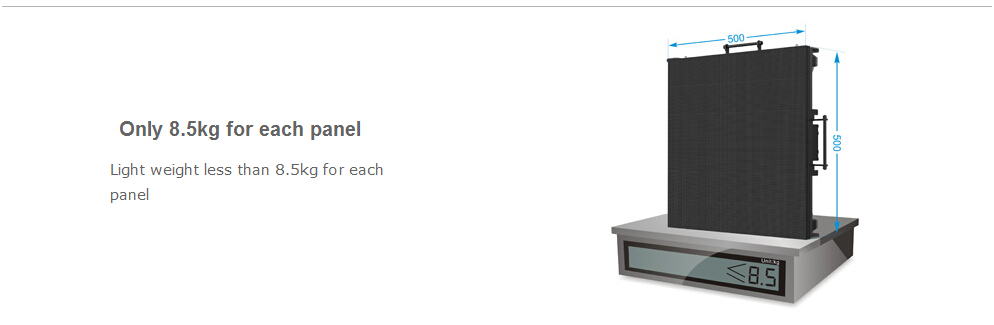

    Panel Weight(kg)
    ≤8.5
    Voltage
    AC 100/220
    Panel Type and Material
    Die-casting aluminum
    Module Size(mm)
    250(W)×250(H)
    Module Size(inch)
    9.84(W)×9.84(H)
    Protection Grade(Front/Rear)
    IP65/IP54
    Avg.Power Consumption(W/㎡)
    310
    Max.Power Consumption(W/㎡)
    930

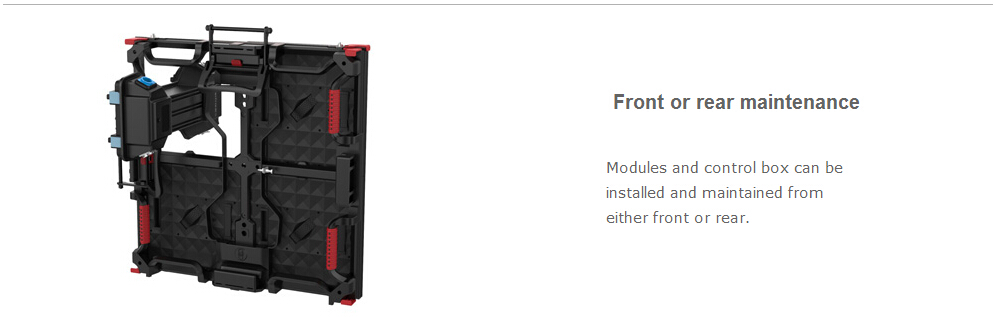

    Serviceability
    Front/Rear
    Operating Temp/Humidity(℃/%RH)
    -20~+40/10~90
    Storage Temp/Humidity(℃/%RH)
    -40~+60/0~90
    Lifetime(hours)
    ≥50000(Nomal Temp)
    Compliant Standard
    CE,ETL,RoHS,FCC
    Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Junction

  • Item
    Value
    Pixel Pitch(mm)
    3.9
    Pixel Density(pixels/㎡)
    65536
    Viewing Angle(Deg.)
    140(H)/140(V)
    Brightness(nits)
    ≥ 5000
    Grey Level(bit)
    12/14/16
    Refresh Rate(Hz)
    1920/2880/3840
    Panel Dimension(mm)
    500(W)×500(H)×104(D)
    Panel Dimension(inch)
    19.69(W)×19.69(H)×4.09(D)
    Panel Resolution(pixels)
    128×128
    Panel Weight(kg)
    ≤8.5
    Voltage
    AC 100/220
    Panel Type and Material
    Die-casting aluminum
    Module Size(mm)
    250(W)×250(H)
    Module Size(inch)
    9.84(W)×9.84(H)
    Protection Grade(Front/Rear)
    IP65/IP54
    Avg.Power Consumption(W/㎡)
    310
    Max.Power Consumption(W/㎡)
    930
    Serviceability
    Front/Rear
    Operating Temp/Humidity(℃/%RH)
    -20~+40/10~90
    Storage Temp/Humidity(℃/%RH)
    -40~+60/0~90
    Lifetime(hours)
    ≥50000(Nomal Temp)
    Compliant Standard
    CE,ETL,RoHS,FCC
    Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Junction
