Item
|
Value
|
|

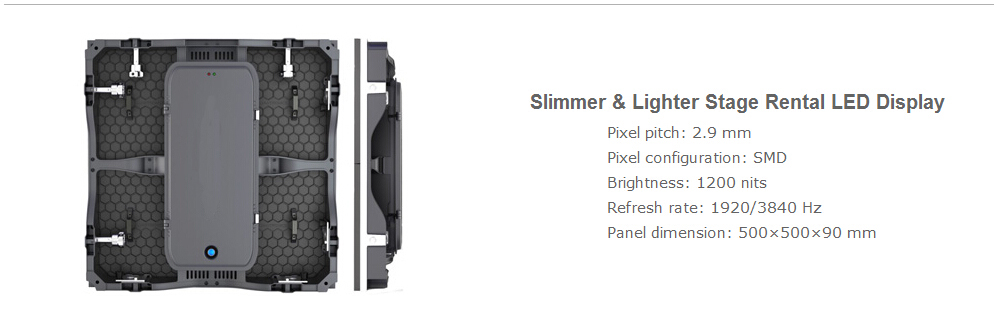

Pixel Pitch(mm)
|
2.9
|
|
Pixel Density(pixels/㎡)
|
113258
|
|
Viewing Angle(Deg.)
|
160(H)/160(V)
|
|
Brightness(nits)
|
1200
|
|
Grey Level(bit)
|
14/16
|
|
Refresh Rate(Hz)
|
960/1920/3840
|
|
Panel Dimension(mm)
|
500(W)×500(H)×90(D)
|
|
Panel Dimension(inch)
|
19.69(W)×19.69(H)×3.54(D)
|
|
Panel Resolution(pixels)
|
168×168
|
|

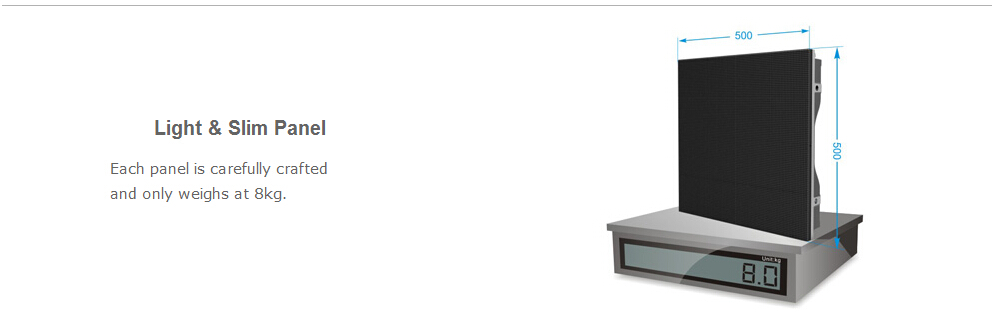

Panel Weight(kg)
|
8
|
|
Hanging Panel Quantity(panels)
|
≤20(vertical)
|
|
Panel Type and Material
|
Die-casting aluminum
|
|
Module Size(mm)
|
250(W)×250(H)
|
|
Module Size(inch)
|
9.84(W)×9.84(H)
|
|
Protection Grade(Front/Rear)
|
IP40
|
|
Avg.Power Consumption(W/㎡)
|
250
|
|
Max.Power Consumption(W/㎡)
|
750
|
|
Brightness Adjustment
|
Manual/Auto/Programmable
|
|
Operating Temp/Humidity(℃/%RH)
|
-20~+40/10~90
|
|
Storage Temp/Humidity(℃/%RH)
|
-40~+60/10~80
|
|
Lifetime(hours)
|
≥50000(Nomal Temp)
|
|
Compliant Standard
|
CE,RoHS,FCC,TUV-CE,TUV-LVD
|
|
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Junction
|
|
