JCVISION Pole LED Display--PL Series

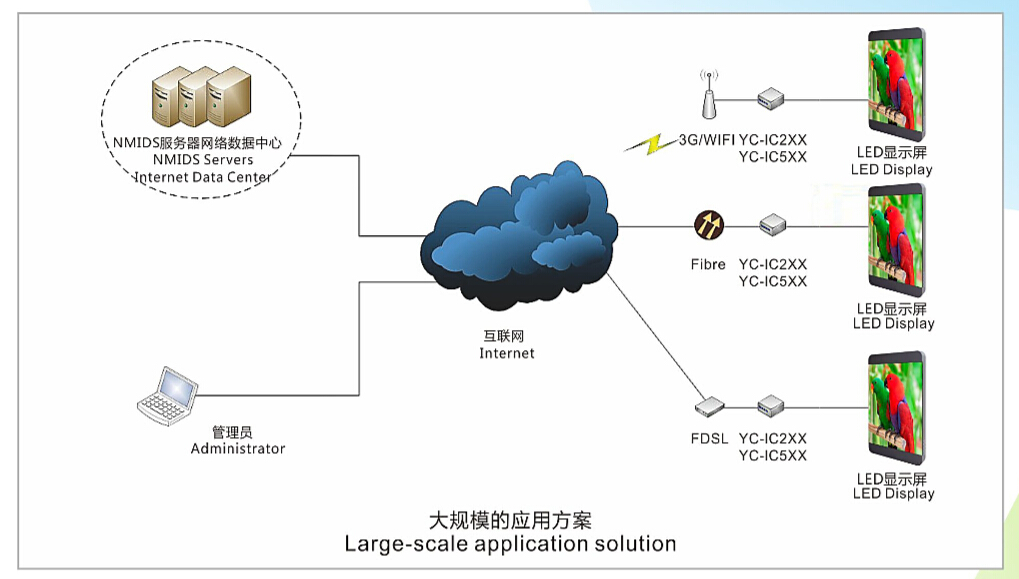

  • ●Intelligent comtrol

    With the LAN ,wifi,3G jintelligent managemeng core modules inside ,the adcertisement show can

    be changeable

    ● Time and labor-saving

    Once it is successfully installed,its advertising content can be changed at any time ,unlike

    those traditeonal static billboards which need to be disassembled frequently ,it is of high

    ime and labor sabing

    ●High IP Level

    With front/back IP level 65/54 ,screen can be used outdoor even against bad weather

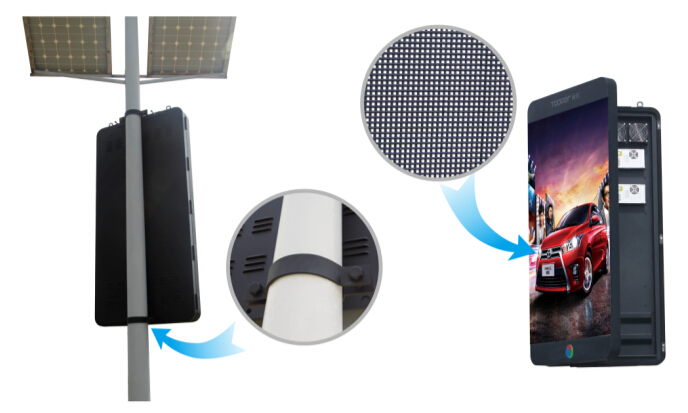

    ● Easy maintenance

    Side-open and back-open maintenance render it more it more optional installation positions

  • Part Number P60-300A P60-400A P60-500A P60-600A
    Pixel Pitch 3mm 4mm 5mm 6mm
    LED Configuration 1R1G1B SMD2020 1R1G1B SMD2020 1R1G1B SMD2727 1R1G1B SMD2727
    Pixel Density 111111dot/m2 62500dot/m2 40000dot/m2 27777dot/m2
    Module Size 192*96mm 128x128mm 160x160mm 192x96mm
    Module Resolution 64x32dot 32x32dot 32x32dot 32x16dot
    Size 60 inch 60 inch 60 inch 60 inch
    Cabinet Size 820x1600x80mm 820x1600x80mm 800x1600X120mm 768x1600X130mm
    CabinetResolution 256*448dot 192X320dot 160x256dot 128x224dot
    Cabinet Weight 40kg 40kg 40kg 40kg
    IP Rating ( front/back) IP65 IP65 IP65 IP65
    Scanning Mode 16S 8S 8S 8S
    Viewing Angle (H/V) ≥4000CD/m2 ≥4000CD/m2 ≥5000CD/m2 ≥5000CD/m2
    Viewing Angle 120° 120° 120° 120°
    View Distance >4m >5m >6m >7m
    Gray Scale 14bit 14bit 14bit 14bit
    Display Scale 16.7M 16.7M 16.7M 16.7M
    Ave.Power Consumption 150W/m2 150W/m2 150 W/m2 150 W/m2
    Environmental ≥960HZ ≥960HZ ≥960HZ ≥960HZ
    Environmental outdoor outdoor outdoor outdoor
    Brightness Adjustment 0 - 100 levels adjustable
    Control Mode asynchronous
    Support Input Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
    OperatingPower AC100/240 50/60HZ
    Operating Humidity 10~90% RH
    Operating Life 100,000hours
