JCVISION Transparent LED Display--A Series

  • Product Series 63 inch 65 inch
    Pixel Pitch 5-7 mm 5-7 mm
    LED Configuration SMD4312 (1R1G1B) SMD4312 (1R1G1B)
    Pixel Density 35136 dots/set 36864 dots/set

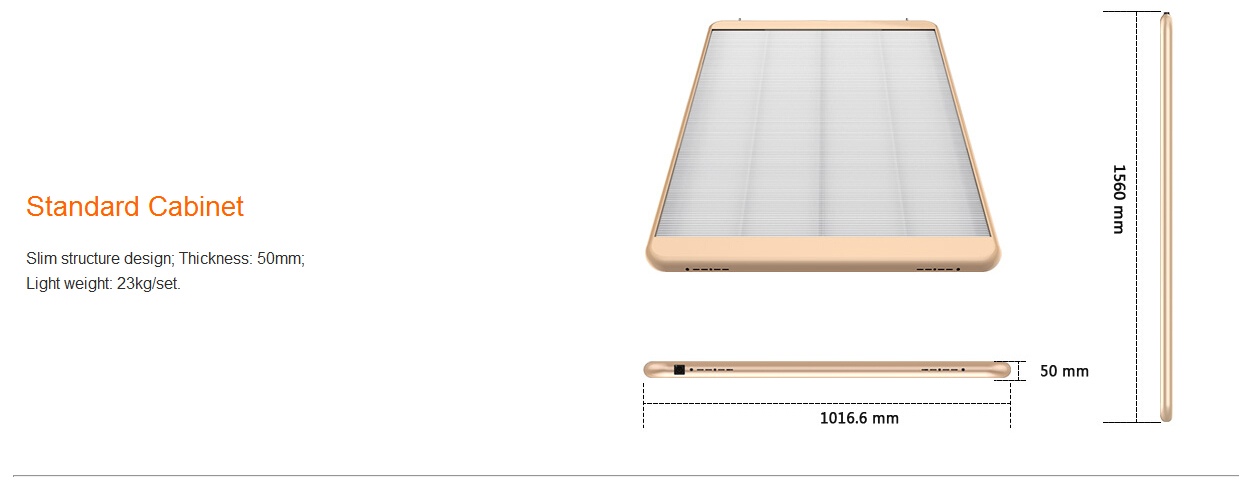

    Cabinet Size 1497*1016.6*50mm 1560*1016.6*50mm
    Display Size 960*1281mm 960*1344mm
    Cabinet Material Aluminum Aluminum
    Weight 21kg/set 25kg/set

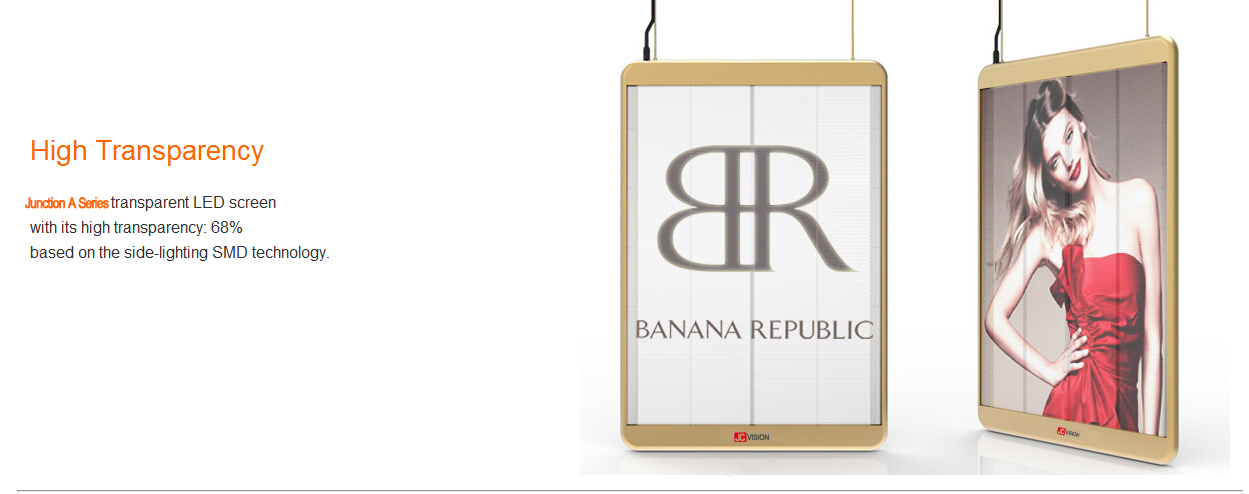

    Transparency 68% 68%
    Brightness 5000nit 5000nit
    Refresh Rate ≤1920 Hz ≤1920 Hz
    Max. Power Consumption 1000W/set 1050W/set
    Ave. Power Consumption 320W/set 350W/set
    Gray Scale 16bit 16bit
    Operating Temperature -10～40℃ -10～40℃
    Operating Humidity 10%-90% 10%-90%
    Input Voltage AC 100~240V AC 100~240V
    Working Voltage DC 5V DC 5V
    Viewing Angle H:160°; V:160° H:160°; V:160°

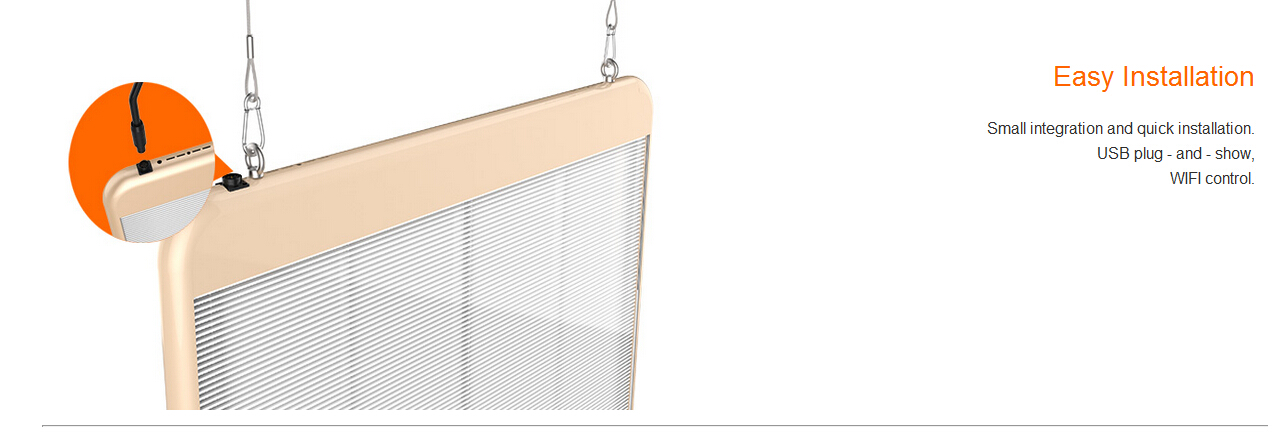

    Installation Way Hang-up Hang-up


  • Product Series 63 inch 65 inch
    Pixel Pitch 5-7 mm 5-7 mm
    LED Configuration SMD4312 (1R1G1B) SMD4312 (1R1G1B)
    Pixel Density 35136 dots/set 36864 dots/set
    Cabinet Size 1497*1016.6*50mm 1560*1016.6*50mm
    Display Size 960*1281mm 960*1344mm
    Cabinet Material Aluminum Aluminum
    Weight 21kg/set 25kg/set
    Transparency 68% 68%
    Brightness 5000nit 5000nit
    Refresh Rate ≤1920 Hz ≤1920 Hz
    Max. Power Consumption 1000W/set 1050W/set
    Ave. Power Consumption 320W/set 350W/set
    Gray Scale 16bit 16bit
    Operating Temperature -10～40℃ -10～40℃
    Operating Humidity 10%-90% 10%-90%
    Input Voltage AC 100~240V AC 100~240V
    Working Voltage DC 5V DC 5V
    Viewing Angle H:160°; V:160° H:160°; V:160°
    Installation Way Hang-up Hang-up
