Product Parameters
|
Size
(inch)
|
Display Area
(mm)
|
Resolution
|
Pixel density
|
Brightness
(cd/m2)
|
Contras
|
View Angle
(H/V)
|
Response Time
(MS)
|
Brand
|
|
10"
|
222.72x125.28mm
|
1024*600
|
117PPI
|
320
|
400:1
|
178°/178°
|
5
|
LG/AUO/
SAMSUNG
|
|
18.5"
|
376.3*301
|
1366*769
|
84PPI
|
200
|
1000:1
|
178°/178°
|
5
|
LG/AUO/
SAMSUNG
|
|
21.5"
|
271.3*479.8
|
1920*1080
|
86PPI
|
200
|
2000:1
|
178°/178°
|
5
|
LG/AUO/
SAMSUNG
|
|
24"
|
518.4*324
|
1920*1200
|
94PPI
|
400
|
1000:1
|
178°/178°
|
5
|
LG/AUO/
SAMSUNG
|
|
26"
|
575.769*323.712
|
1366*768
|
60PPI
|
450
|
1000:1
|
178°/178°
|
5
|
LG/AUO/
SAMSUNG
|
|
27"
|
596.736*335.664
|
2560*1440
|
60PPI
|
350
|
1000:1
|
178°/178°
|
5
|
LG/AUO/
SAMSUNG
|
|
32"
|
698.4*392.8
|
1388*768
|
60PPI
|
350
|
1800:1
|
178°/178°
|
5
|
LG/AUO/
SAMSUNG
|
|
36"
|
808.128*454.572
|
1920*1080
|
49PII
|
350
|
1400:1
|
178°/178°
|
6
|
LG/AUO/
SAMSUNG
|
|
42"
|
930.2*523.3
|
1920*1080
|
49PII
|
400
|
4000:1
|
178°/178°
|
6.5
|
LG/AUO/
SAMSUNG
|
|
43"
|
941.184*529.416
|
1920*1080
|
49PII
|
400
|
4000:1
|
178°/178°
|
6.5
|
LG/AUO/
SAMSUNG
|
|
47"
|
1039.68*584.82
|
1920*1080
|
49PII
|
300
|
4000:1
|
178°/178°
|
6.5
|
LG/AUO/
SAMSUNG
|
|
49"
|
1073.8*604
|
1920*1080
|
49PII
|
300
|
4000:1
|
178°/178°
|
6.5
|
LG/AUO/
SAMSUNG
|
|
50"
|
1095.8*616.4
|
1920*1080
|
49PII
|
300
|
5000:1
|
178°/178°
|
6.5
|
LG/AUO/
SAMSUNG
|
|
55"
|
1209.6*680.4
|
1920*1080
|
49PII
|
400
|
5000:1
|
178°/178°
|
6.5
|
LG/AUO/
SAMSUNG
|
|
65"
|
1488*868
|
1920*1080
|
49PII
|
360
|
5000:1
|
178°/178°
|
6.5
|
LG/AUO/
SAMSUNG
|
|
70"
|
879*1557
|
1920*1080
|
49PII
|
400
|
5000:1
|
178°/178°
|
6.5
|
LG/AUO/
SAMSUNG
|
|
82"
|
1805.76*1015.74
|
1920*1080
|
49PII
|
400
|
5000:1
|
178°/178°
|
6.5
|
LG/AUO/
SAMSUNG
|
|
84"
|
1860.48*1214.35
|
1920*1080
|
49PII
|
400
|
5000:1
|
178°/178°
|
6.5
|
LG/AUO/
SAMSUNG
|
|
90"
|
1992.96*1121.04
|
1920*1080
|
49PII
|
400
|
5000:1
|
178°/178°
|
6.5
|
LG/AUO/
SAMSUNG
|
|
98"
|
2158.85*1214.35
|
1920*1080
|
49PII
|
400
|
5000:1
|
178°/178°
|
6.5
|
LG/AUO/
SAMSUNG
|
|
110"
|
2436.48*1370.52
|
1920*1080
|
49PII
|
400
|
5000:1
|
178°/178°
|
6.5
|
LG/AUO/
SAMSUNG
|
USB version advertising player: update advertisement by USB (M113)
CPU
|
HD video and audio decoder chip
|
System RAM
|
NAND FLASH 4G
|
System ROM
|
DDR 128MB
|
Storage
|
SD/USB
|
Decoding resolution
|
MAX. 1080P
|
O/S
|
UCOS
|
USB 2.0 Port
|
1 x USB Host, 1 x USB OTG
|
Serial Port
|
1 x Serial Port
|
I2C Interface
|
1 x I2C Interface
|
LVDS Interface
|
1 x can directly drive 15 ~ 100 inch LCD screen, 50/60Hz
|
Audio Out
|
1 x Stereo Audio Out (2 x 10W/8Ω speaker can drive directly)
|
Etc.
|
RTC real time clock, Timer switch, System upgrade via USB
|
PWR Input
|
DC 12V/5A (Power On/Off)
|
PWR Consumption
|
Not more than 5W (Without speaker,LCD,backlight Inverter,USB device)
|

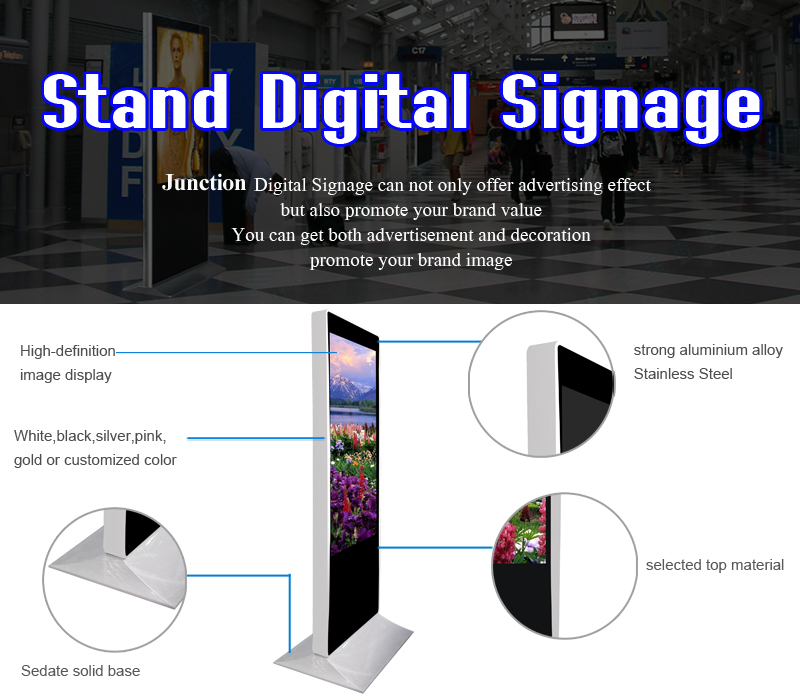

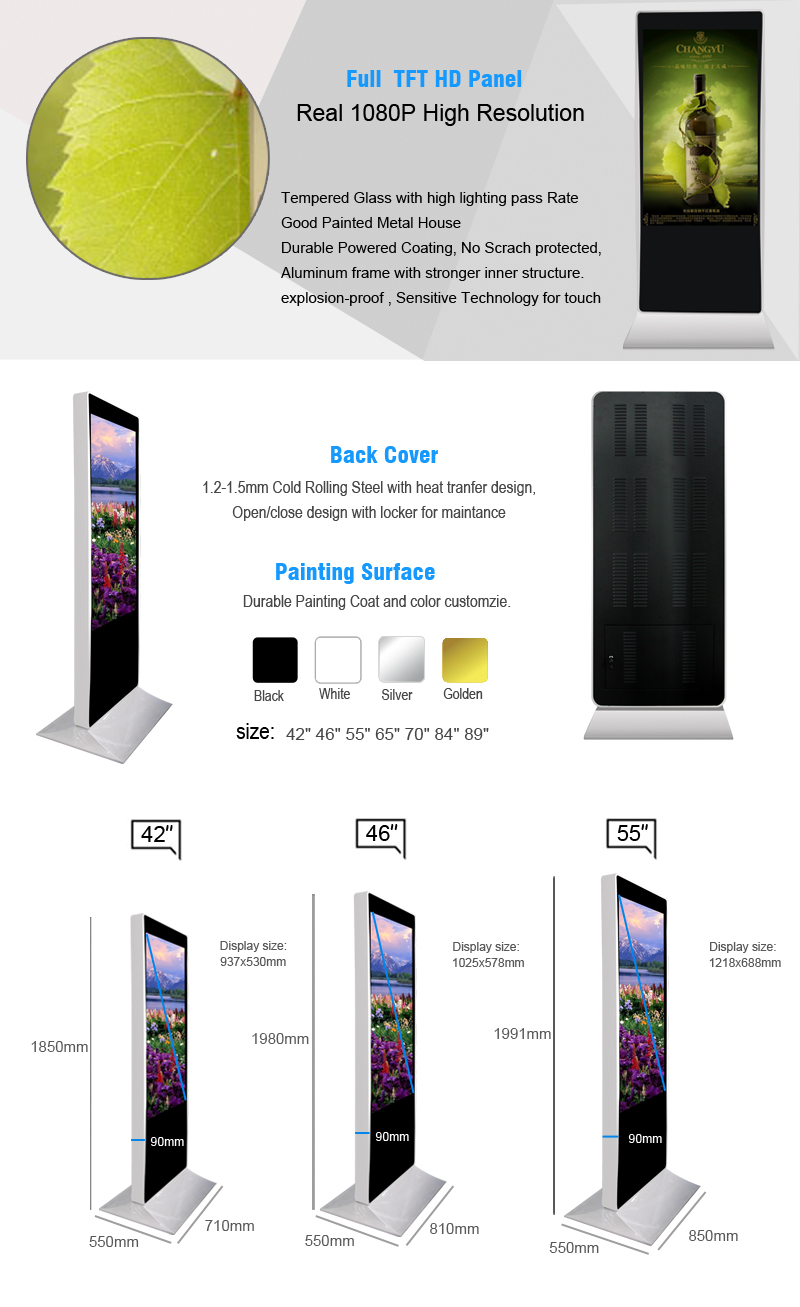

Shell material
|
Cold rolled steel with Aluminiun edge
|
Glass
|
toughened glass surface
|
Painting
|
powder coating
|
Color
|
Black/silver/white etc.
|
Network version advertising player: update advertisement through internet, OS: Android4.2.2(M158)
Main hardware
|
Board configuration
|
CPU dual core ARM Cortex A9 1.5 GHz（max1.6GHz）, Motherboard M158, GPU quad coreARM Mali-400 MP, HYNIX/SAMSUNG DDR3 1Gbyte, HYNIX/SAMSUNG NAND FLASH 8GB （Scalable TF/USB）
|
Decoding resolution
|
Perfect support 1080P Full HD
|
Main function
|
OS
|
Android4.2.2
|
Programming
|
Perfect support for video / picture / caption / logo / Date Time Day / weather, etc. regional free split-screen combinations; support background images
|
Play Mode
|
Receiving media content over the network, stored in the local loop after, commercials, broadcast regularly, gaskets playback;
By U-import;
U disk playback.
|
Intelligent Management
|
B / S architecture, GTV digital signage release management system: a custom template; timed release program, the program cycle play, schedule broadcast emergency announcements, gaskets and other players scheduled to play, MD5 two-way encryption, multi-level approval; terminal group management, real-time monitoring, remote control, timer switch, time to download, flow control; access control; logging and statistics functions
C / S architecture, ADPE / EzPoster programming software: programming; schedule; Export card; two-way encryption; terminal timer switch and other functions
|
Multimedia Support
|
Media Format
|
Supports MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv and other mainstream video formats; supports MP3 and other audio formats; Support JPG, JPEG, BMP, PNG, GIF and other image formats
|
Basic interface
|
Power Interface
|
X1
|
Video input interface
|
VGA×1
HDMI×1
|
Video output interface
|
X 1,can directly drive 50 / 60Hz LCD, LVDS 30 core 2.0mm double needle
|
Audio input interface
|
X 1, linear input, 3.5MM headphone jack
|
Audio output interface
|
X 2,CLASS-D stereo amplifier output can directly drive 2 x 10W / 8Ω speakers, 2 core 2.0mm jack
|
Ethernet Interface
|
X 1,10 / 100M Ethernet
|
WiFi interface
|
X 1，WIFI(150Mbps)
|
3G module interface
|
PCIE slot (supporting a phone deck) x 1
USB interface x 1
|
USB2.0 interface
|
USB OTG x 1
USB HOST x 1
|
Backlight interface
|
X 1, 6 core 2.0mm jack
|
Fan connector
|
X 2 , 2 core 2.0mm jack
|
Infrared interface
|
X 1, 5 core 2.0mm jack, including red and green LED
|
Speaker Output
|
Left channel x 1; right channel x 1
|
Camera Input
|
X 1 , 30 core 2.0mm double needle
|
Function expansion port
|
Serial × 1
SPI port × 1
Camera input × 1
USB touch screen interface × 1
|
Serial ports
|
X 1,7 white core 2.0mm jack
|
SD card holder
|
X1
|
Additional features
|
RTC Real-Time Clock
|
Time synchronization
|
Watchdog reset
|
Using an internal watchdog, abnormal automatic recovery
|
External IR input
|
NEC format support dedicated remote control
|
Electrical Specifications
|
Power Input
|
Switching power supply (STB, 5VSB, 5V, 12V), 10 core 2.00mm
|
PC version kiosk (touch screen optional): its function is the same as computer (windows), can make self-service terminal kiosk with all kinds of extention function.
Touch screen technology
|
|
Standard touch screen
|
Infrared multi touch screen
|
Other touch screen
|
Capacitive,Resistance ,Surface etc.
|
Standard touch points
|
2 points / 4 points / 6 points
|
Other touch points
|
Up to 32 points multi touch
|
Standard PC Specification
|
Mini PC
|
CPU
|
Intel G3260/3.2GHZ/Dual core
|
Main board
|
H81/B75
|
RAM
|
DDR3,2GB
|
HDD
|
S-ATAII 500GB/16MB/5400rpm
|
Graphics
|
Intel HD Graphics
|
Ports
|
4 x USB, 1 x VGA, 1 x LAN, 1 x AUDIO-OUT , 1 x MIC-IN,DVI,HDMI
|
